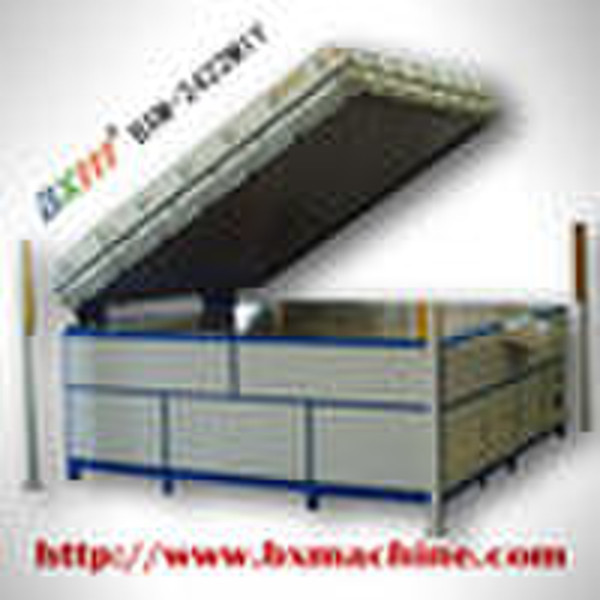

Semiautomatic Solar Module Laminator

BXM-2422M1Y Laminator is a Semiautomatic solar module laminator. The lamination cycle can be controlled by a PLC. The operator works the program through the touch-screen to control the cycle to see the processing dataBENEFITS:1.PLC + Touch screen control system;2.All parameters are setup on the touch-screen;3.Adopt thermal Oil heating plate system, it provides uniform plate temperature accuracy; 4.Conductive Oil heating station is separated with the machine; 5.Special connecting system for that the Silicon Membrane can be changed within 10 minutes. 6.With two vacuum pump, when the vacuum degree reaches the setting data, they can be stopped automatically. SPECIFICATION: 1.heating board size: area: 2400mm×2600mm;laminating area size: 2200mm×2400mm; 2.Max. thickness of laminate: 35mm; 3.Vacuum degree: 200-20pa; 4.Temperature range: 30-180; 5.Temperature uniformity: ±1.5; 6.main body size: 2850mm x 2750mm x1450mm; 7.Net weight: about 7000kg 8.Power supply: 380VAC, 50 Hz, 3 phases 5 wires; 9.Peak power: 42Kw
