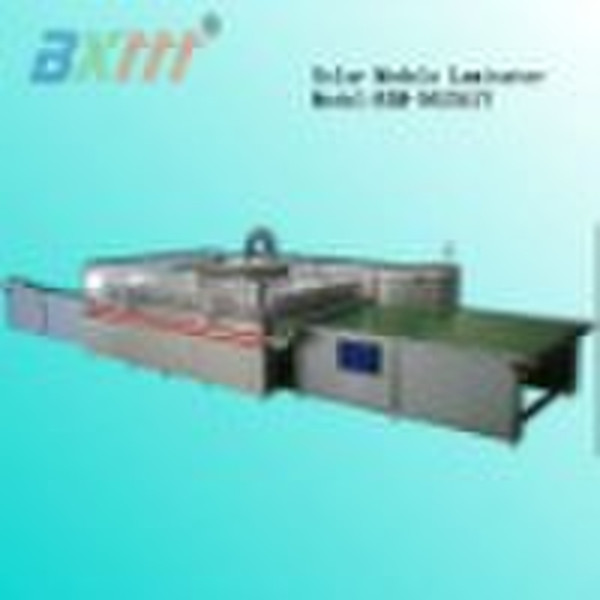

Solar Module Laminator BXM-3622

The BXM-3622A1Y Laminator is an automatic solar module laminator. The lamination cycle is automatic controlled by a PLC. The operator works the program through the touch-screen to control the cycle to see the temperature values.BENEFITS:1.PLC + TouchScreencontrol system;2.All parameters are setup on the touch-screen;3.Automatic loading and unloading conveyers;4.The next work piece can be load and process work piece can be unload during lamination; 5.Maintenance is simple. Specifications: 1.Heating board size: 3600×2400mm, Max module size: 3500×2200mm 2.Vacuum degree: 80-20pa 3.Temperature range: 30-200 4.Temperature uniformity: ±1.5 5.Dimensions: 13000mmLX 3600mmWX2260mmH 6.Net weight: about 17.5 T 7.Power supply: 380VAC, 50 Hz, 3 phases 5 wires. 8.Work power: 39Kw 9.Peak power: 69Kw
