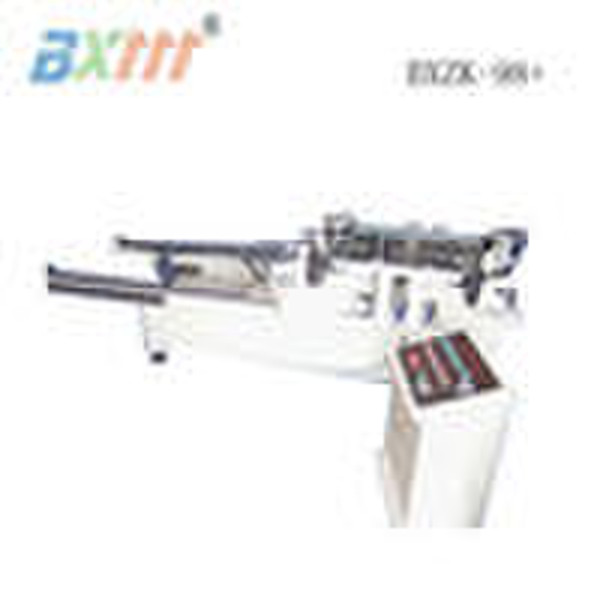

Solar Panel Framing Machine

The BXZK-98 is a framing machine to frame the solar module during the production. It is used for riveting of corner connector of the processing aluminum frame. BENEFITS: 1.The group frame rivets in an integral. Aluminum frame four corner connecting at one time; 2.One time framing can control the seam and plane, the framing quality can forecast; 3.Perfect framing result with a tight tolerance;4.Strong point, the width size are poleless adjustable; 5.It can change the module size in a short time;SPECIFICATIONS: 1.Max. module size: 2100mm×1200mm; 2.Module size from 350mm×350mm; 3.Framing precision: ≤±1mm; 4.Catercorner size precision:≤±1.5mm; 5.Working air pressure: 0.4MPa 0.7Mpa; 6.Framing Hydraulic pressure: 1.0MPa 15.0MPa; 7.Dimension: 3000×2000×1100mm; 8.Net Weight: 1200Kg; 9.Power Supply: 380V, 3 phases 5 wires, 50Hz, 4Kw.
